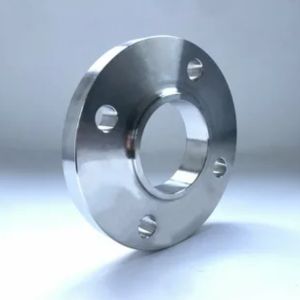

From the heart of Hamilton, New Zealand, Neesham Flanges stands as a trusted manufacturer and supplier, dedicated to precision engineering. We take particular pride in our DIN 2566 PN16 threaded flanges, a product line that embodies our commitment to robust quality and reliability. These flanges are crafted to provide a secure, leak-proof connection for piping systems where welding isn’t suitable, offering a practical and efficient solution for a wide array of industrial projects, all backed by our local expertise and stringent manufacturing standards.
The strength of our DIN 2566 PN16 threaded flanges begins with their composition, typically forged from durable carbon steel or stainless steel to ensure lasting performance. They are manufactured to meet strict mechanical property requirements, including excellent tensile strength and yield strength, allowing them to comfortably handle pressures up to 16 bar. This combination of high-grade materials and proven mechanical integrity means you can rely on them to maintain a secure and dependable seal in demanding environments.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| Rated Diameter | Flange | Neck | Raised face | Screws | Weight (7,85 Kg/dm3) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d1 | Thread | D | b | k | h1 | d3 | d4 | f | Holes | Thread | d2 | Kg | |
| 15 | 21,3 | R 1/2 | 95 | 14 | 65 | 20 | 35 | 45 | 2 | 4 | M 12 | 14 | 0,613 |
| 20 | 26,9 | R 3/4 | 105 | 16 | 75 | 24 | 45 | 58 | 2 | 4 | M 12 | 14 | 0,91 |
| 25 | 33,7 | R 1 | 115 | 16 | 85 | 24 | 52 | 68 | 2 | 4 | M 12 | 14 | 1,1 |
| 32 | 42,4 | R 1 1/4 | 140 | 16 | 100 | 26 | 60 | 78 | 2 | 4 | M 16 | 18 | 1,6 |
| 40 | 48,3 | R 1 1/2 | 150 | 16 | 110 | 26 | 70 | 88 | 3 | 4 | M 16 | 18 | 1,78 |
| 50 | 60,3 | R 2 | 165 | 18 | 125 | 28 | 85 | 102 | 3 | 4 | M 16 | 18 | 2,43 |
| 65 | 76,1 | R 2 1/2 | 185 | 18 | 145 | 32 | 105 | 122 | 3 | 4 | M 16 | 18 | 3,18 |
| 80 | 88,9 | R 3 | 200 | 20 | 160 | 34 | 118 | 138 | 3 | 8 | M 16 | 18 | 4,12 |
| 100 | 114,3 | R 4 | 220 | 20 | 180 | 38 | 140 | 158 | 3 | 8 | M 16 | 18 | 4,47 |
| 125 | 139,7 | R 5 | 250 | 22 | 210 | 40 | 168 | 188 | 3 | 8 | M 16 | 18 | 6,13 |
| 150 | 165,1 | R 6 | 285 | 22 | 240 | 44 | 195 | 212 | 3 | 8 | M 20 | 22 | 7,92 |

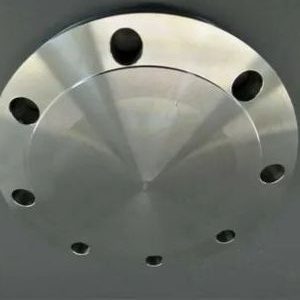

Neesham Flanges, a leading supplier in Hamilton, New Zealand, offers an extensive selection of DIN 2566 PN16 Threaded Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2565 PN6 Threaded Flanges are commonly used in low-pressure systems where frequent disassembly or maintenance is required. They are ideal for water treatment facilities, construction projects, and light industrial applications, as they can be easily screwed into place without the need for welding. These flanges securely connect pipes and equipment, ensuring leak-free performance and straightforward installation. Their versatility and ease of use make them suitable for applications involving non-corrosive fluids, where a reliable, cost-effective, and easy-to-maintain connection is essential.
Yes, we offer custom sizes for DIN 2566 PN16 Threaded Flanges to meet specific project needs. Our team at Neesham Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@neeshamflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
U
| DIN 2566 PN16 Threaded Flange Dimensions | Raised Face DIN 2566 PN16 Threaded Flange Manufacturer |
| Carbon Steel DIN 2566 PN16 Threaded Flange | DIN 2566 PN16 Threaded RF Flange Supplier |
| ASME SA105N Raised Faced DIN 2566 PN16 Threaded Flanges | 18 inch Carbon Steel DIN 2566 PN16 Threaded Flange |
| DIN 2566 PN16 Threaded Pipe Flanges Wholesaler | DIN 2566 PN16 Threaded Flanges Supplier |
| German Standard DIN 2566 PN16 Threaded Flanges | DIN 2566 PN16 Threaded Flange Supplier in New Zealand |
| Nickel Alloy DIN 2566 PN16 Threaded Flange | Mild Steel DIN 2566 PN16 Threaded Flange |
| DIN 2566 PN16 Threaded Flanges Supplier in Hamilton | Alloy Steel DIN 2566 PN16 Threaded Flanges Manufacturer in New Zealand |
| DIN 2566 PN16 Screwed Flange Stockist in New Zealand | Raised Faced DIN 2566 PN16 Slip-On flanges Dealer in New Zealand |
| 4 inch Stainless Steel DIN 2566 PN16 Threaded Flange | DIN 2566 PN16 Screwed RF Flanges Stockholder |
| DIN 2566 PN16 Threaded FF Flange Supplier | Suppliers of DIN 2566 PN16 Threaded Flange |
| DIN 2566 PN16 Threaded Flanges Distributor in Wellington | Flat Face DIN 2566 PN16 Threaded Flanges Exporter |
| 8 Inch DIN 2566 PN16 Threaded Pipe Flanges | DIN 2566 PN16 Threaded Flanges Stockist |
| DIN 2566 PN16 Screwed Flanges Supplier in Tauranga | MS DIN 2566 PN16 Threaded Flange |
| 18 inch DIN 2566 PN16 Carbon Steel Threaded Flange | DIN 2566 PN16 Threaded Flange Dimensions in mm |
| Alloy Steel DIN 2566 PN16 Threaded Flanges | Copper Nickel DIN 2566 PN16 Threaded Flanges at Best Price |
| DIN 2566 PN16 Threaded Flange Manufacturer | Flat Face DIN 2566 PN16 Screwed Flange Manufacturer |
| 30 inch DIN 2566 PN16 Threaded Flange Dealer | Raised Face DIN 2566 PN16 Threaded Flanges Manufacturer |
| DIN 2566 PN16 Threaded Flange Exporter | DIN 2566 PN16 Threaded Flange Pressure Ratings |
| Raised Face DIN 2566 PN16 Threaded Plate Flanges | Titanium DIN 2566 PN16 Threaded Flanges |
| DIN 2566 PN16 Threaded Pipe Flanges Supplier in Auckland | Duplex Steel DIN 2566 PN16 Threaded Flanges |
| DIN 2566 PN16 Large Diameter Threaded Flange | 30 Inch DIN 2566 PN16 Threaded Pipe Flange Dimensions |
| Stainless Steel DIN 2566 PN16 Threaded Flange | ASTM B564 Raised Faced DIN 2566 PN16 Threaded Flanges |
| Carbon Steel Raised Face DIN 2566 PN16 Screwed Flange Stockist | Duplex Steel DIN 2566 PN16 Threaded Flanges Supplier in Tauranga |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
