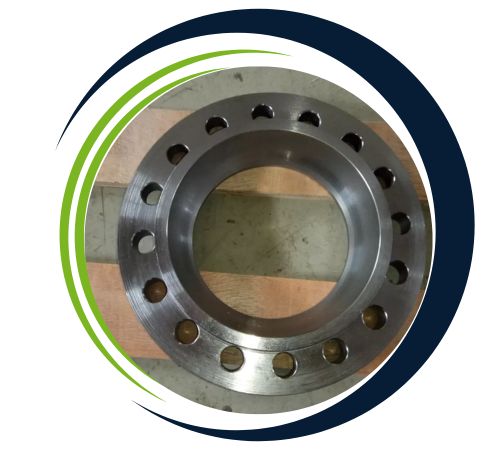

Based in the industrious heart of Hamilton, New Zealand, Neesham Flanges has built a reputation for precision and reliability in the supply of essential pipeline components. Our specialisation in 16Mo3 Flanges reflects a commitment to serving demanding industrial sectors both locally and internationally. We understand that these aren’t just simple parts; they are critical connections ensuring the integrity and safety of high-temperature systems, which is why we manufacture and supply them with a focus on uncompromising quality and dependable service for our clients.
The 16Mo3 grade is specifically formulated for strength under heat, primarily composed of chromium and molybdenum, which gives it excellent resistance to oxidation and creep. This composition translates directly into impressive mechanical properties, allowing these flanges to maintain their structural integrity and perform reliably in environments where temperatures can soar. They are designed to withstand significant pressure and thermal stress, making them a robust and durable choice for connecting critical components in high-temperature pipelines.
| Specifications | 16Mo3 Flanges |
|---|---|
| Coating | Anti-rust Paint/ Zinc Plated/ Oil Black Paint/ Yellow Transparent/ Cold and Hot Dip Galvanized |

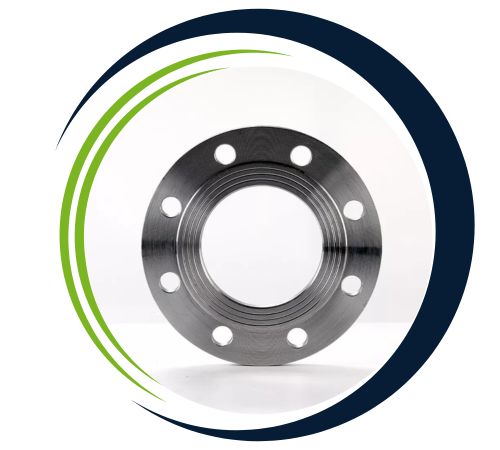

| Manufacturer of | Forged/ Threaded/ Screwed / Plate |
| Manufacturer Length | NPS 1⁄₂” Inch To NPS 48” Inch |

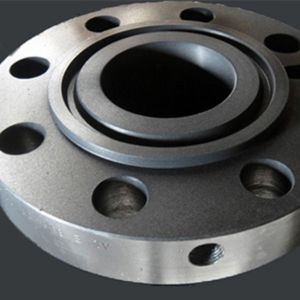

| Face Type | RTJ/ RF/ FF |
| Schedule Chart | SCH 5S To XXS. |
| Vishal Steel Manufacturer Belbow Types | Weld Neck/ Socket Weld/ Threaded/ Reducing/ Lap Joint/ Blind/ Slip On |
| Forging Methods | Forging & Casting, Rolling & Cutting |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Application | Bitumen upgraders Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| JIS Standard | 5K/ 10K/ 16K 20K/ 30K/ 40K/ 63K |
| Flange Test | Hydrostatic testing machine/ UI trasonic flaw detector/ X-ray detector/ Direct-reading Spectrograph/ Magnetic particle detector |
| Supporting Material | Gasket/ Ring Joint/ Flange Bolts |
| Production Technique | Forged/ Heat treated and machined |
| Packing | Plywood Pallet And Plywood Box |
| Brand | Vishal Steel |
| Productivity | 800 ton per month |
| Transportation | Ocean And Air |
| Supply Ability | 700 Ton Per Month |
| Flange Equipment | Pushing Machine/ electric bevelling machine/ Press machine/ Bending machine/ Sand-blasting machine etc |
Element | Percentage % | Element | Percentage % |
P | 0.025 | V | – |
S | 0.010 | Al | – |
Cr | 0.030 | N | 0.012 |
Mo | 0.25/0.35 | Cu | 0.30 |
C | 0.12/0.20 | Ni | 0.30 |
Si | 0.35 | Nb | – |
Mn | 0.40/0.90 | Ti | – |
| 16Mo3 Flanges | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation in 100-150 mm(%) | Maximum Thickness (mm) | Elongation in 16 mm(%) |
| 440-590 | 220-275 | 19 | 250 | 24 |
DIN,WNr | BS | UNI | ISO | DIN | UNS |
16Mo3 | 240 | 16Mo3 | P26 | 1.5415 | K11562 |
243 | TS26 |
| Grade | Thickness | Temperature (°C) | |||||||||
50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | ||
(mm) | MPa | MPa | MPa | MPa | MPa | MPa | MPa | MPa | MPa | MPa | |
| 16Mo3 Flanges | ≤16 | 273 | 264 | 250 | 233 | 213 | 194 | 175 | 159 | 147 | 141 |
>16 ≤40 | 268 | 259 | 245 | 228 | 209 | 190 | 172 | 156 | 145 | 139 | |
>40 ≤60 | 258 | 250 | 236 | 220 | 202 | 183 | 165 | 150 | 139 | 134 | |
>60 ≤100 | 238 | 230 | 218 | 203 | 186 | 169 | 153 | 139 | 129 | 123 | |
>100 ≤150 | 218 | 211 | 200 | 186 | 171 | 155 | 140 | 127 | 118 | 113 | |
>150 ≤250 | 208 | 202 | 191 | 178 | 163 | 148 | 134 | 121 | 113 | 108 | |

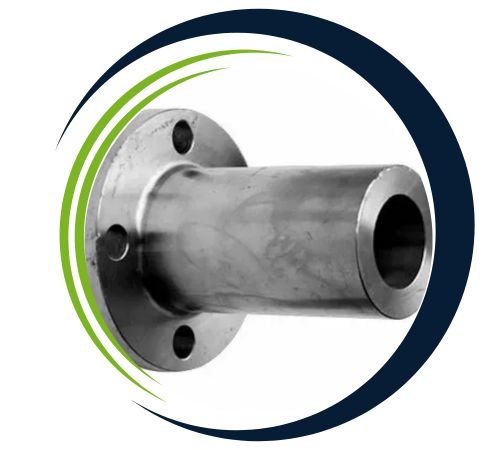

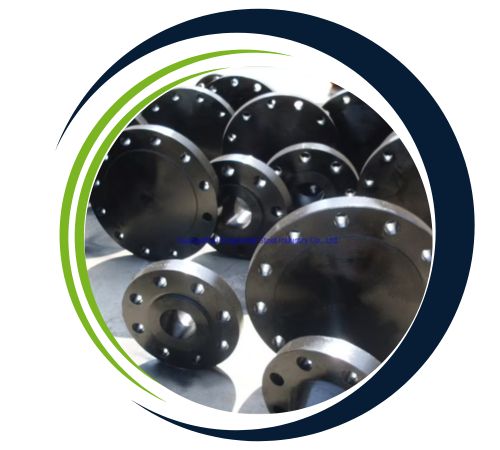

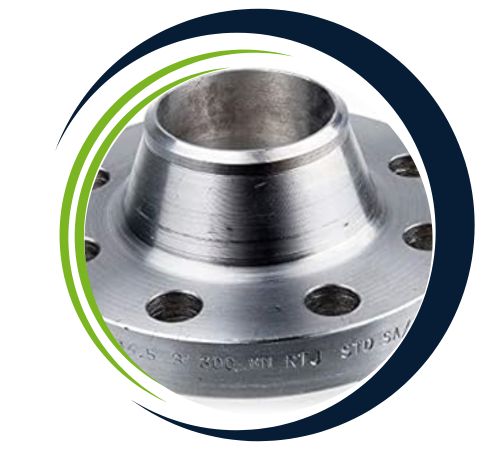

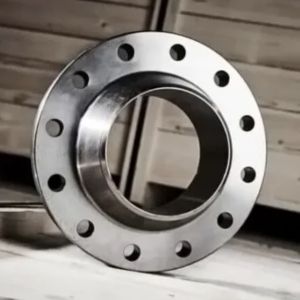

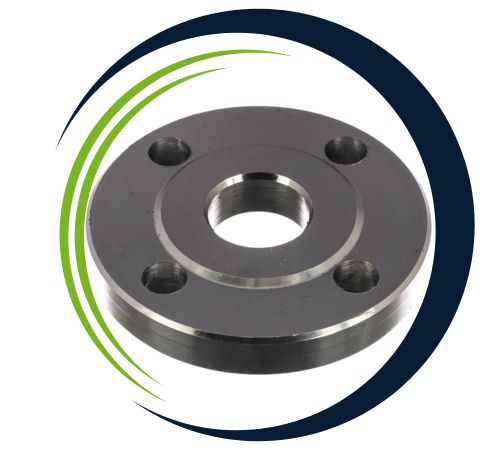

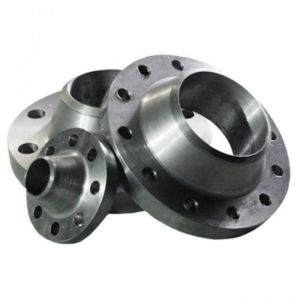

Neesham Flanges, a leading supplier in Hamilton, New Zealand, offers an extensive selection of 16Mo3 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
16Mo3 flanges find extensive applications in high-temperature, high-pressure services, especially in the power generation, petrochemical, and oil & gas sectors. They are used extensively in steam boilers, pressure vessels, heat exchangers and pipes, where their superb resistance to thermal fatigue, corrosion, and stress is of prime importance. 16Mo3 flanges find optimal applications in systems where temperatures are high, hence in steam applications, hot gas applications and chemical process applications. Their strength and durability ensure consistent performance in challenging conditions, improving the safety and efficiency of critical infrastructure.
| Normal Pipe Size | DN |
|---|---|
| 1/2 | 15 |
| 3/4 | 20 |
| 1 | 25 |
| 1 1/4 | 32 |
| 1 1/2 | 40 |
| 2 | 50 |
| 2 1/2 | 65 |
| 3 | 80 |
| 4 | 100 |
| Flanges Size inches | Flanges Size millimeter | Outer Diameter (O.D.) inches | Outer Diameter (O.D.) millimeter | Inner Diameter (I.D.) inches | Inner Diameter (I.D.) millimeter | Ø B.H.C. In inches | Ø B.H.C. In millimeter | Ø B.H. inches | Ø B.H. millimeter | # B.H. | Thickness inches | Thickness millimeter | Weight lbs | Weight Kilogram |
| 8.0 | 200 | 13.39 | 340 | 8.72 | 221.50 | 11.61 | 295 | 0.870 | 22 | 12 | 1.020 | 26 | 21.0 | 9.5 |
| 10.0 | 250 | 15.94 | 405 | 10.88 | 276.40 | 13.97 | 355 | 1.020 | 26 | 12 | 1.140 | 29 | 31.0 | 14.1 |
| 12.0 | 300 | 18.11 | 460 | 12.88 | 327.20 | 16.14 | 410 | 1.020 | 26 | 12 | 1.260 | 32 | 42.7 | 19.4 |
| 14.0 | 350 | 20.47 | 520 | 14.19 | 360.40 | 18.50 | 470 | 1.020 | 26 | 16 | 1.380 | 35 | 62.3 | 28.3 |
| 15.0 | 400 | 22.83 | 580 | 16.19 | 411.20 | 20.67 | 525 | 1.180 | 30 | 16 | 1.500 | 38 | 80.5 | 36.5 |
| 17.0 | 450 | 25.20 | 640 | 18.19 | 462.00 | 23.03 | 585 | 1.180 | 30 | 20 | 1.650 | 42 | 110.3 | 50.1 |
| 19.0 | 500 | 28.15 | 715 | 20.19 | 512.80 | 25.59 | 650 | 1.300 | 33 | 20 | 1.810 | 46 | 141.5 | 64.2 |
| 24.0 | 600 | 33.07 | 840 | 24.19 | 614.40 | 30.32 | 770 | 1.420 | 36 | 20 | 2.050 | 52 | 213.5 | 96.9 |
| Normal Size Of Steel Pipe | Outer Diameter (O.D.) | 10 Schedule | 20 Schedule | 30 Schedule | STD Wall | 40 Schedule | 60 Schedule | EXT Hvy | 80 Schedule | 100 Schedule | 120 Schedule | 140 Schedule | 160 Schedule | XX Hvy |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ½ | 0.84 | 0.083 | … | … | 0.109 | 0.109 | … | 0.147 | 0.147 | … | … | … | 0.188 | 0.294 |
| ¾ | 1.05 | 0.083 | … | … | 0.113 | 0.113 | … | 0.154 | 0.154 | … | … | … | 0.219 | 0.308 |
| 1 | 1.315 | 0.109 | … | … | 0.133 | 0.133 | … | 0.179 | 0.179 | … | … | … | 0.25 | 0.358 |
| 1 ¼ | 1.66 | 0.109 | … | … | 0.14 | 0.14 | … | 0.191 | 0.191 | … | … | … | 0.25 | 0.382 |
| 1 ½ | 1.9 | 0.109 | … | … | 0.145 | 0.145 | … | 0.2 | 0.2 | … | … | … | 0.281 | 0.4 |
| 2 | 2.375 | 0.109 | … | … | 0.154 | 0.154 | … | 0.218 | 0.218 | … | … | … | 0.344 | 0.436 |
| 2 ½ | 2.875 | 0.12 | … | … | 0.203 | 0.203 | … | 0.276 | 0.276 | … | … | … | 0.375 | 0.552 |
| 3 | 3.5 | 0.12 | – | – | 0.216 | 0.216 | – | 0.3 | 0.3 | – | – | – | 0.438 | 0.6 |
| 3 ½ | 4 | 0.12 | – | – | 0.226 | 0.226 | – | 0.318 | 0.318 | – | – | – | – | 0.636 |
| 4 | 4.5 | 0.12 | – | – | 0.237 | 0.237 | – | 0.337 | 0.337 | – | 0.438 | – | 0.531 | 0.674 |
| 5 | 5.563 | 0.134 | – | – | 0.258 | 0.258 | – | 0.375 | 0.375 | – | 0.5 | – | 0.625 | 0.75 |
| 6 | 6.625 | 0.134 | – | – | 0.28 | 0.28 | – | 0.432 | 0.432 | – | 0.562 | – | 0.719 | 0.864 |
| 8 | 8.625 | 0.148 | 0.25 | 0.277 | 0.322 | 0.322 | 0.406 | 0.5 | 0.5 | 0.594 | 0.719 | 0.812 | 0.906 | 0.875 |
| 10 | 10.75 | 0.165 | 0.25 | 0.307 | 0.365 | 0.365 | 0.5 | 0.5 | 0.594 | 0.719 | 0.844 | 1 | 1.125 | 1 |
| 12 | 12.75 | 0.18 | 0.25 | 0.33 | 0.375 | 0.406 | 0.562 | 0.5 | 0.688 | 0.844 | 1 | 1.125 | 1.312 | 1 |
| 14 | 14 | 0.25 | 0.312 | 0.375 | 0.375 | 0.438 | 0.594 | 0.5 | 0.75 | 0.938 | 1.094 | 1.25 | 1.406 | – |
| 16 | 16 | 0.25 | 0.312 | 0.375 | 0.375 | 0.5 | 0.656 | 0.5 | 0.844 | 1.031 | 1.219 | 1.438 | 1.594 | – |
| 18 | 18 | 0.25 | 0.312 | 0.438 | 0.375 | 0.562 | 0.75 | 0.5 | 0.938 | 1.156 | 1.375 | 1.562 | 1.781 | – |
| 20 | 20 | 0.25 | 0.375 | 0.5 | 0.375 | 0.594 | 0.812 | 0.5 | 1.031 | 1.281 | 1.5 | 1.75 | 1.969 | – |
| 22 | 22 | 0.25 | – | – | 0.375 | – | – | 0.5 | – | – | – | – | – | – |
| 24 | 24 | 0.25 | 0.375 | 0.562 | 0.375 | 0.688 | 0.969 | 0.5 | 1.219 | 1.531 | 1.812 | 2.062 | 2.344 | – |
| 26 | 26 | – | – | – | 0.375 | – | – | 0.5 | – | – | – | – | – | – |
| 30 | 30 | 0.312 | 0.5 | 0.625 | 0.375 | – | – | 0.5 | – | – | – | – | – | – |
Yes, we offer custom sizes for 16Mo3 Flanges to meet specific project needs. Our team at Neesham Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@neeshamflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
