Neesham Flanges, based in Hamilton, New Zealand, is a reputable manufacturer and supplier of top-notch Titanium Gr 5 Flanges designed for high-performance applications. With cutting-edge production capabilities and rigorous quality control, the company ensures that its flanges deliver outstanding strength, corrosion resistance, and long-lasting reliability. Titanium Grade 5, or Ti-6Al-4V, is well-known for its exceptional mechanical properties, making these flanges perfect for tough industrial settings. Neesham Flanges caters to various sectors, including aerospace, chemical processing, marine engineering, and power generation, guaranteeing that each product meets global standards for durability and efficiency.
These Titanium Gr 5 Flanges are crafted from the titanium alloy Ti-6Al-4V, which consists of 6% aluminum and 4% vanadium. This alloy boasts impressive mechanical strength, high tensile and yield properties, and remarkable resistance to corrosion in seawater, chlorides, and oxidizing chemicals. Titanium Grade 5 maintains its structural integrity even at elevated temperatures and offers superior fatigue resistance compared to commercially pure titanium. Its lightweight nature, combined with high toughness, hardness, and thermal stability, makes these flanges ideal for extreme operating conditions. The alloy’s exceptional strength-to-weight ratio enhances performance in both high-pressure and high-temperature environments.
| Standards | GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, DIN, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48, EN |
|---|---|
| Pressure Rating ANSI | Class 1500, Class 150, Class 900, Class 2500, Class 300, Class 600, |
| Pressure Calculation in DIN | 10Bar, 16Bar, 25Bar, 40Bar, 6Bar, / PN16, PN64, PN40, PN25, PN10, PN6 |
| JIS | 16 K, 20 K, 5K, 10 K, 40 K, 63 K, 30 K, |
| UNI | 10Bar 16Bar 6Bar 25Bar 40Bar |
| EN | 6Bar 25Bar 40Bar 10Bar 16Bar |
| Most common Types | Threaded / Screwed / Forged / Plate |
| Production technique |
|

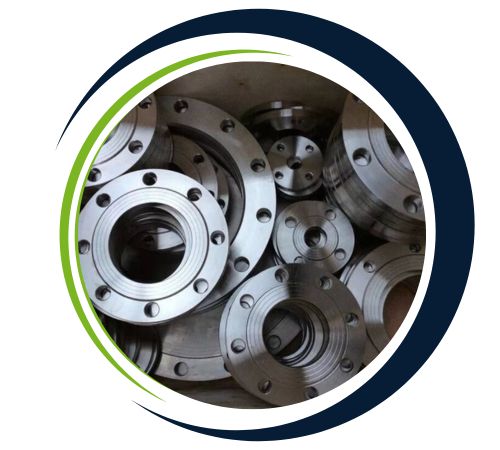

| Shapes and Types we produce | Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF),Raised Face (RF), Large Tongue & Groove, Groove, Lap-Joint Face (LJF) |
| Test | Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector |
| Equipment | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc |

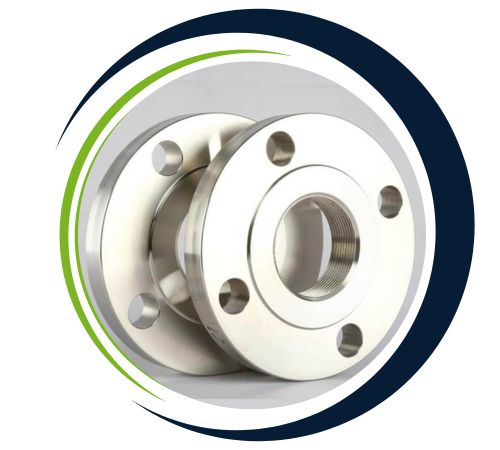

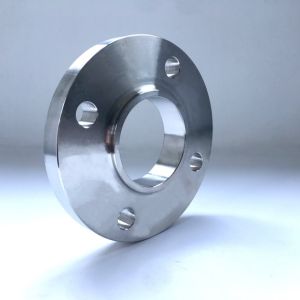

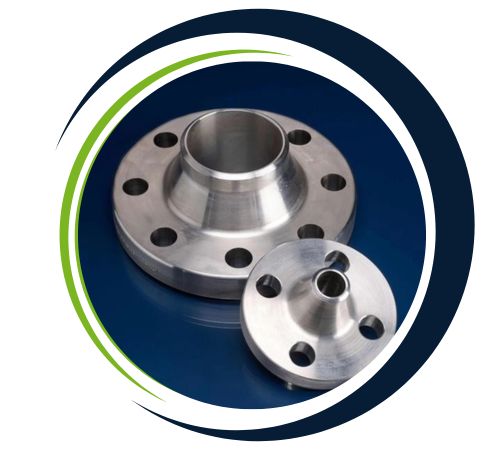

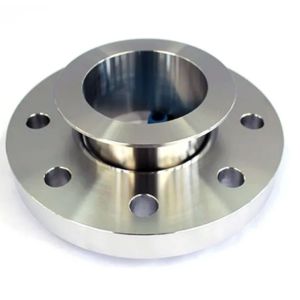

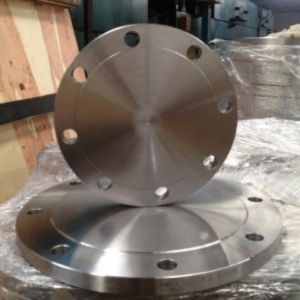

Neesham Flanges, a leading supplier in Hamilton, New Zealand, offers an extensive selection of Titanium Gr 5 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium Gr 5 Flanges are extensively utilized in industries that require exceptional mechanical strength, corrosion resistance, and lightweight performance. In the aerospace industry, they are crucial for aircraft components, hydraulic systems, and high-stress structural applications. Chemical and petrochemical plants rely on these flanges for pipelines that transport aggressive acids, solvents, and high-temperature media. The marine and offshore sectors depend on Titanium Gr 5 for seawater pipelines, desalination plants, and offshore structures due to its remarkable resistance to saltwater corrosion.
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | N56400 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Yes, we offer custom sizes for Titanium Gr 5 Flanges to meet specific project needs. Our team at Neesham Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@neeshamflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
